SU-XL Series Ratchet Wrenches

A time tested and proven tool design, square drive ratchets offer a cost efficient option to handle a wide range of bolting make-up and breakout needs. The SU-XL Series ratchet employs a "patented design" which increases accuracy and reduces the number of moving parts. The standard SU-XL tool capacities range from 100 to 50,000 foot pounds of torque using a 10,000 P.S.I. hydraulic pump.

 Features
Square Drive Ratchet Wrench - For use with all standard size square drive impact sockets. Easily shifts from make-up to break-out without disassembly.
TL T-6 – SU-1XL through SU-30XL Series bodies made of durable, high-strength, lightweight aircraft alloy giving the housing maximum strength with minimum weight.
Unibody - Eliminates "Pinch Points". Reduces side loading. Totally enclosed drive-train assembly, allowing nothing in or out of the tool.
360° Swivel Fittings (Patented) - Allow hose movement without hose binding. Stainless steel with fewer moving parts - a great improvement over competitors' delicate design.
New! 48 x 48 Reaction System - This system allows the reaction member to index 7.5 degrees creating 48 different reaction points in both directions. This reaction system is reversible which gives the user an additional 48 different reaction points - 96 reaction positions total!
Direct Porting Technology - Torq/Lite® ‘s unique hydraulic porting design incorporates significantly less turns then our competitors for the hydraulic fluid to pass through when coming in and out of the tool. The end result of our design produces a faster actuating and retracting wrench!
Slotted Piston Rod - Maintains 90° relationship between piston rod and nut. Increases accuracy. Reduces number of moving parts.
Anti-Reverse Pawl - Holds rotational wind-up to maintain required torque.
Pawl Release - Anti-reverse pawl release mechanism allows manual release of tool if "binding" occurs.
Reaction Member - 360° rotation made of lightweight aircraft alloy. Increased reaction area.
Coated - All exposed parts to resist corrosion.
Light/Ergonomic - Reduces operator fatigue.
Calibrated - Every tool is tested and calibrated to +\-.03 accuracy, traceable to N.I.S.T.
Warranty - Torq/Lite® SU-XL Series wrenches come with a 3 Year - 2 Tier warranty, that is the best standard warranty in the market today! We stand behind our wrenches like no other!

Specifications
SU-XL Series Max Ft. Lbs.
@10,000 psi
Length Height Width Radius Square Drive Weight
SU-1XL 1.382 5.978" 4.100" 1.980" 1.200" 3/4" 5 lbs.
SU-3XL 2,921 7.970" 4.870" 2.775" 1.260" 1" 11 lbs.
SU-6XL 5,110 8.410" 6.250" 3.000" 1.953" 1-1/2" 17 lbs.
SU-11XL 10,793 9.500" 7.375" 3.900" 2.062" 1-1/2" 30 lbs.
SU-20XL 17,934 11.600" 9.184" 4.950" 3.000" 2-1/2" 62 lbs.
SU-30XL 25,804 11.725" 9.777" 5.875" 3.125" 2-1/2" 75 lbs.
SU-45XL - 13.312" 11.000" 5.750" 3.000" 2-1/2" 145 lbs.
SU-60XL - 16.000" 14.000" 7.250" 3.750" 2-1/2" 295 lbs.

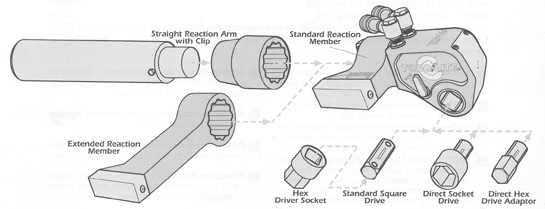

 Accessories (available upon request)


To receive more information about the above products, please call, fax, e-mail or use our Inquiries page
