Torque
Controlled Rolling Motors
|

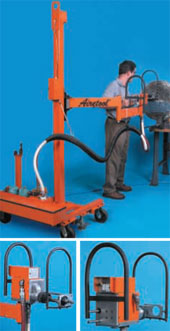

| DAS
II Dominator Tube Rolling System |
 The new
Airetool DAS II Dominator has been designed to deliver power, performance,
durability and unmatched productivity in pneumatic tube rolling technology.
Features
| • |
All pneumatic system for complete, self-contained
tool holding system. |
| • |
No electrical power source required, eliminating
typical problems such as fluctuating plant voltages and electrical
interference from other equipment. |
| • |
Push-to-start motor runs only when needed, reducing
noise, prolonging motor life and conserving shop air. |
| • |
Standard model features 5’ vertical
and horizontal reach. |
| • |
Small overall footprint w/4 casters for improved
mobility. |
| • |
Larger integral lifting eye. |
| • |
Ergonomic design for operator comfort and ease of use. |
| • |
Smooth, fluid function design for unparalleled production. |
| • |
Tool holding system virtually eliminates operator error. |
| • |
Increases expander life by as much as three times compared
to conventional hand-held equipment. |
| • |
Greatly enhances the accuracy of tube rolling reducing costly
improperly rolled tubes. |
| • |
Right or left hand operation without conversion. |
| • |
Available with optional auto-lube & cycle
counter. |
› Specifications |
| |
| DAS-100-TRS |
 Tube Rolling
System for benchtop tube rolling applications 1/4" thru
5/8" O. D. tubes.
Features
| • |
Rugged Design |
| • |
Push-to-Start Tube Rolling Cycle |
| • |
Facilitates Expander Alignment |
| • |
Absorbs Torque |
| • |
Supports Weight |
| • |
Improves Productivity |
| • |
Reduces Effort Through Ergonomic Design |
| • |
Designed for use with 900, 1300 and 800 Series Tube Expanders |
| Three
models are available: |
| • |
DAS-100-TRS-720
2500 for tube sizes 1/4" OD. |
| • |
DAS-100-TRS-720
1800 for tube sizes 3/8" – 1/2" OD. |
| • |
DAS-100-TRS-720
550 for tube sizes 1/2" – 5/8" OD. |
› Specifications |
| |
| Model 1850-40 |
 This
Airetool pneumatic powered torque controlled rolling motor offers
the highest controlled torque of any rolling motor currently
available. For controlled torque up to 600 ft. lbs.
› Specifications
|
| |
|
Airetrol
Air Driven Motors
|
|
 Control
expansion by accurate measurement of torque. Automatically
stops expansion accurately according to predetermined setting.
Assures uniformly tight tube joints, prevents over- and under-expansion.
This provides maximum holding strength for individual tubes.
Strong, lightweight aluminum housing provides easier handling,
less fatigue. Rugged drive combines precision control which
measures torque output.
All Airetrol
motors include a sensing cam designed and engineered specifically
for tube expanding applications.
›
Specifications
|
| |
| Right
Angle Torque Controlled Rolling Motors - For the Boiler
Industry |
|
 Right
Angle Torque Control for Rolling Tubes into drums of package
and stationary boilers
Features
| • |
Externally
adjusted torque control setting |
| • |
Bevel
gears specifically designed for longer life under high
torque loading |
| • |
Planetary
gear train permits tool speed changes with minimal part
replacement |
| • |
All
steel angle head can be oriented in numerous positions
in relation to throttle and torque mounting plate |
| • |
Fully
adjustable exhaust deflector has 360 degree rotation |
›
Specifications
|
| |
|
To
receive more information about the above products, please call, fax,
e-mail or use our Inquiries
page
|
