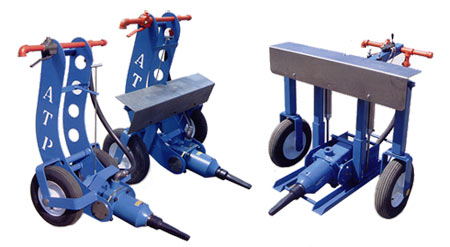

The ATP-PD05 is a one person, trouble
free machine used to open railroad slide gates. Designed and engineered
for economy, speed and operator safety, this rugged compact opener
is both powerful and mobile. Its compressed air drive motor and
mechanism delivers 8000 ft. lbs. of torque at the operator's fingertips.
It is reversible, so it can open doors as well as close them.
ATP-PD07 has
all the qualities and benefits of the ATP-PD05, plus the capacity
of the wheels that pivot sideways at the touch of a switch for
opening or closing traveling knuckles. The wheels then return
to their original position to move to the next gate.
ATP-PD09 has wheels that pivot like the ATP-PD07 needed for
traveling gates, However it has lever actuated adjustable elevation
for varying gate heights. (12" adjustable spread with a 24" maximum
height)
Features
| • |
Safe- eliminates the danger of accidents incurred
while manually opening hopper car gates. |
| • |
Fast- opens the most stubborn gates in about
4 seconds. |
| • |
Reliable- designed and engineered for years of
trouble free service. |
| • |
Versatile - works in any and all weather conditions
with no inherent shock hazards. |
| • |
Mobile - oversize pneumatic tires make it easy
to roll almost anywhere. |
| • |
Reversible - opens and closes railroad car slide-gate doors |
| • |
Powerful - compressed air coupled to the impact mechanism
produces the power of a giant. |
| • |
Practical - Simple one person operation. |
|
