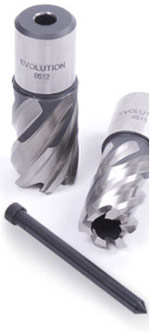

Cyclone Cutters
Cyclone annular cutters are guaranteed to outperform annular cutters
made out of HSS, Cobalt, or Tini Coated Cutters. Because...
| • |
The
Tini Coating on HSS annular cutters increases the cost of the cutter
but only enhances the cutter’s appearance. |
 |
| • |
HSS
M-2 Annular Cutters can only be heat treated up to 64 RC before
they become too brittle. |
| • |
Cobalt
Annular cutters can only be heat treated up to 66 RC before they
become too brittle. |
| • |
Cyclone
Premium Annular Cutters can be heat treated up to 68 RC and they
still have tempered hardness. |
| • |
A
higher RC rating without brittleness means more holes cut per sharpening. |
|
|
|
| Cyclone
Premium Annular Cutters are available in stock for immediate
delivery in the following size ranges: Short
Series - 1" length, 7/16" - 2-3/8" Diameter
Long Series - 2" length, 7/16" - 2-3/8" Diameter Evolution has adaptors available to enable Cyclone Annular Cutters
to be used in certain quick change chuck drilling machines. |
PREMIUM
GRADE ANNULAR CUTTERS
| Cutter Diameter |
1” Depth Part
No. |
2” Depth Part
No. |
3” Depth Part
No. |
| 7/16” |
CC437 |
CC437L |
N/A |
| 1/2” |
CC500 |
CC500L |
N/A |
| 9/16” |
CC562 |
CC562L |
N/A |
| 5/8” |
CC625 |
CC625L |
N/A |
| 11/16” |
CC687 |
CC687L |
CC687X |
| 3/4” |
CC750 |
CC750L |
CC750X |
| 13/16” |
CC812 |
CC812L |
CC812X |
| 7/8” |
CC875 |
CC875L |
CC875X |
| 15/16” |
CC937 |
CC937L |
CC937X |
| 1” |
CC100 |
CC100L |
CC100X |
| 1-1/16” |
CC106 |
CC106L |
CC106X |
| 1-1/8” |
CC112 |
CC112L |
CC112X |
| 1-3/16” |
CC118 |
CC118L |
CC118X |
| 1-1/4” |
CC125 |
CC125L |
CC125X |
| 1-5/16” |
CC131 |
CC131L |
CC131X |
| 1-3/8” |
CC137 |
CC137L |
CC137X |
| 1-7/16” |
CC143 |
CC143L |
CC143X |
| 1-1/2” |
CC150 |
CC150L |
CC150X |
| 1-9/16” |
CC156 |
CC156L |
CC156X |
| 1-5/8” |
CC162 |
CC162L |
CC162X |
| 1-11/16” |
CC168 |
CC168L |
CC168X |
| 1-3/4” |
CC175 |
CC175L |
CC175X |
| 1-13/16” |
CC181 |
CC181L |
CC181X |
| 1-7/8” |
CC187 |
CC187L |
CC187X |
| 1-15/16” |
CC193 |
CC193L |
CC193X |
| 2” |
CC200 |
CC200L |
CC200X |
| 2-1/16” |
CC206 |
CC206L |
CC206X |
| 2-1/8” |
CC212 |
CC212L |
CC212X |
| 2-3/16” |
CC218 |
CC218L |
CC218X |
| 2-1/4” |
CC225 |
CC225L |
CC225X |
| 2-5/16” |
CC231 |
CC231L |
CC231X |
| 2-3/8” |
CC237 |
CC237L |
CC237X |
CARBIDE
TIPPED ANNULAR CUTTERS
| Cutter Diameter |
2” Depth Part
No. |
3” Depth Part
No. |
| 11/16” |
CT687L |
CT687X |
| 3/4”
| CT750L |
CT750X |
| 13/16”
| CT812L |
CT812X |
| 7/8”
| CT875L |
CT875X |
| 15/16”
| CT937L |
CT937X |
| 1”
| CT100L |
CT100X |
| 1-1/16”
| CT106L |
CT106X |
| 1-1/8”
| CT112L |
CT112X |
| 1-3/16”
| CT118L |
CT118X |
| 1-1/4”
| CT125L |
CT125X |
| 1-5/16”
| CT131L |
CT131X |
| 1-3/8”
| CT137L |
CT137X |
| 1-7/16”
| CT143L |
CT143X |
| 1-1/2”
| CT150L |
CT150X |
| 1-9/16”
| CT156L |
CT156X |
| 1-5/8”
| CT162L |
CT162X |
| 1-11/16”
| CT168L |
CT168X |
| 1-3/4”
| CT175L |
CT175X |
| 1-13/16”
| CT181L |
CT181X |
| 1-7/8”
| CT187L |
CT187X |
| 1-15/16”
| CT193L |
CT193X |
| 2”
| CT200L |
CT200X |
| 2-1/16”
| CT206L |
CT206X |
| 2-1/8”
| CT212L |
CT212X |
| 2-3/16”
| CT218L |
CT218X |
| 2-1/4”
| CT225L |
CT225X |
| 2-5/16”
| CT231L |
CT231X |
| 2-3/8”
| CT237L |
CT237X |
METRIC PREMIUM
GRADE ANNULAR CUTTERS
| Cutter Diameter |
1" Depth Part
No. |
2" Depth Part
No. |
| 12mm |
CC12MS |
CC12ML |
| 13mm |
CC13MS |
CC13ML |
| 14mm |
CC14MS |
CC14ML |
| 15mm |
CC15MS |
CC15ML |
| 16mm |
CC16MS |
CC16ML |
| 17mm |
CC17MS |
CC17ML |
| 18mm |
CC18MS |
CC18ML |
| 19mm |
CC19MS |
CC19ML |
| 20mm |
CC20MS |
CC20ML |
| 21mm |
CC21MS |
CC21ML |
| 22mm |
CC22MS |
CC22ML |
| 23mm |
CC23MS |
CC23ML |
| 24mm |
CC24MS |
CC24ML |
| 25mm |
CC25MS |
CC25ML |
| 26mm |
CC26MS |
CC26ML |
| 27mm |
CC27MS |
CC27ML |
| 28mm |
CC28MS |
CC28ML |
| 29mm |
CC29MS |
CC29ML |
| 30mm |
CC30MS |
CC30ML |
| 31mm |
CC31MS |
CC31ML |
| 32mm |
CC32MS |
CC32ML |
| 33mm |
CC33MS |
CC33ML |
| 34mm |
CC34MS |
CC34ML |
| 35mm |
CC35MS |
CC35ML |
| 36mm |
CC36MS |
CC36ML |
| 37mm |
CC37MS |
CC37ML |
| 38mm |
CC38MS |
CC38ML |
| 39mm |
CC39MS |
CC39ML |
| 40mm |
CC40MS |
CC40ML |
| 41mm |
CC41MS |
CC41ML |
| 42mm |
CC42MS |
CC42ML |
| 43mm |
CC43MS |
CC43ML |
| 44mm |
CC44MS |
CC44ML |
| 45mm |
CC45MS |
CC45ML |
| 46mm |
CC46MS |
CC46ML |
| 47mm |
CC47MS |
CC47ML |
| 48mm |
CC48MS |
CC48ML |
| 49mm |
CC49MS |
CC49ML |
| 50mm |
CC50MS |
CC50ML |
| 51mm |
CC51MS |
CC51ML |
| 52mm |
CC52MS |
CC52ML |
| 53mm |
CC53MS |
CC53ML |
| 54mm |
CC54MS |
CC54ML |
| 55mm |
CC55MS |
CC55ML |
| 56mm |
CC56MS |
CC56ML |
| 57mm |
CC57MS |
CC57ML |
| 58mm |
CC58MS |
CC58ML |
| 59mm |
CC59MS |
CC59ML |
| 60mm |
CC60MS |
CC60ML |
