Hydraulic
Cylinders
|

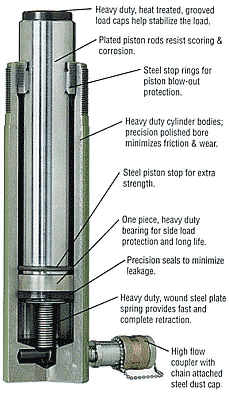

Features
| • |
Wide
Variety
Simplex offers more cylinder selection, styles, tonnages and
strokes to match your everyday needs |
| • |
Built
for Rugged Construction/Industrial Use
All Simplex Cylinders meet ANSI/ASME B30.1 Safety
Standards. Steel stop rings, plated pistons and heavy duty construction
provide trouble free operation and long life
|
| • |
Sure
Spring Retraction
Heavy duty, wound steel plate springs provide fast and complete
retraction cycle after cycle and retain their tension longer. |
| • |
Versatile
Fixturing
Threaded collars and internal plunger threads withstand full
loading for maximum flexibility in fixturing. |
| • |
Piston
Blow-Out Protection
Steel stop ring restricts piston travel at end of stroke and
allows the cylinder to be operated at full stroke |
| • |
Protection
from Contamination
With the stop ring a polyurethane wiper cleans the rod surface
during retraction, protecting the inner cylinder assembly from
dirt, moisture and other contaminants |
|
 |
| |
| Simplex
Cylinders at a Glance |
| Cylinder
Series |
Description/Application |
Cylinder
Type |
Plunger
Type |
Capacity
(tons) |
Strokes
(in.) |
| R |
General purpose spring return |
Single-
Acting |
Solid |
5-100 |
5/8-14-1/4 |
| RAS |
Lightweight
for easy carrying and positioning |
50-150 |
2-8
|
| RLS |
Low
height-spring return |
10-100 |
1-2 |
| RL |
Low
height-load return |
10-100 |
1-2 |
| RFS |
Very
low height-spring return |
5-150 |
5/8-11/16 |
| RF |
Very
low height-load return |
10-150 |
5/8-11/16 |
| RLR |
Jacking
cylinders |
30-500 |
2-10* |
| RLN |
Mechanical
load holding |
30-500 |
2-10* |
| RC |
Hard-Kor
cyl. are used for pulling applications, prestressing &
post tensioning |
Hollow |
12-100 |
5/16-6-1/8 |
| RCD |
Double-
Acting |
30-660 |
2-10* |
| RDA |
Controlled
retraction/fast cycling |
Solid |
50-1000 |
2-13* |
| S |
Spreading
force for tight spaces |
Spreader |
Spreader |
3/4-10 |
4-9 |
*
Custom Strokes Available |
