Hydraulic Pumps
|
| Hand
Pumps |
Lightweight
for Single Acting Cylinder
Simplex hand pumps are widely known for their rugged construction
and low, back saving handle efforts. Choose these hand pumps for maximum
portability & lightweight. All metal construction and hand size release
knobs make these pumps truly industrial grade tools. |
Features
| • |
8
models for maximum portability |
 |
| • |
Lightweight |
| • |
All
metal Construction |
| • |
Handles
for easy portability |
| • |
External
relief valve |
| • |
Single
or two speed models |
| • |
3/8"
NPTF outlet ports |
|
| |
|

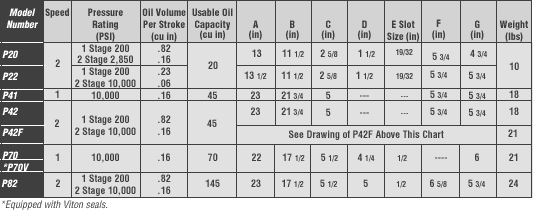

Specifications
|
 |
| |
Two Speed
for Single and Double Acting Cylinders
Simplex
combined high flows & low handle efforts in these larger, high performance
hand pumps. Low handle efforts & fast advance are achieved through
an adjustable handle pivot. In the normal setting these pumps supply
maximum flow reducing the number of required handle strokes. For tough
jobs at maximum pressure, adjust the pivot point and reduce the handle
effort by 30%. (P140 & P300 Series only). |
Features
| • |
10
models |
 |
| • |
Low,
back saving handle effort |
| • |
High
displacement of oil per stroke |
| • |
Adjustable
handle effort / dual point pivots |
| • |
All
metal construction |
| • |
Large
easy fill reservoirs |
| • |
External
adjustable relief valves |
|
| |
| Specifications |
 |
| |
| Electric
Pumps |
1/2
HP - 20 Series
These units feature 115V permanent magnet motors
that will continue to operate on as low as 60 volts. The 20 Series
pump is lightweight and portable, but powerful enough to start under
full load, even on low voltage. Cast aluminum reservoirs dissipate
heat and make these pumps rugged enough for the toughest construction
environments. |
Features
| • |
16
standard models |
Pumps
Available from 1/2 to 5 HP |
| • |
Rated
for continuous duty |
| • |
Suc-O-Matic
reduces retraction time |
| • |
Two-speed
operation |
| • |
Higher
crossover for faster cylinder rate |
| • |
Starts
under full load |
| • |
Runs
reliably on long extension cords |
| • |
10
amp max. amperage draw |
| • |
Adjustable
relief for variable pressure settings |
| • |
Dual
ports |
| • |
Quiet
running (80dBA) |
|
| |
| Specifications |
 |
| |
| Custom
Build |
 |
| |
| Rotary
Air Pumps |
| For Quieter operation
where compressed air is available, or for use in explosive environments.
Delivers high speed operation for a variety of medium sized cylinders,
hydraulic tools or systems. |
Features
| • |
6
standard models |
 |
| • |
Suc-O-Matic
reduces retraction time |
| • |
Two-speed
operation |
| • |
Higher
crossover for faster cylinder Cycle |
| • |
Rotary
air @ 50 cfm |
| • |
Adjustable
relief for variable pressure settings |
| • |
Dual
ports |
| |
|
|
| |
| Specifications |
 |
| |
| G-Series Pumps |
 SIMPLEX introduces
the new G3 and G5 Series High Force Hydraulic Power Pumps to
the lineup. The G3 & G5 models were designed with the end
user in mind; offering exceptional performance to weight ratios,
enhanced power control technologies, precision tuned components
for dependability and modular assemblies to manage operating
costs.
Whether you
select the G3 or G5 Series Power Pump, you can count on superior
performance levels and reliability to get the job done!
Enhancements
New Motors
• Compact, lightweight universal motor reduces pump weight on
G3 models.
• G5 Series heavy duty permanent magnet motor holds up in tough
applications.
• Ideal for use with long extension cords.
• Motors provide reliable service on as little as 60 VAC.
• Operates at full pressure on a 20 amp @ 115 VAC circuit.
• Replaceable motor brushes / armature.
New Modern Shroud Design
• Integrated center-balanced handle for easy transport.
• Non-pendant pumps include On/Off/Jog switch recessed into
the shroud.
• Integrated gauge shroud protects your investment.
Advanced Circuit Technology
• Improves pump performance through precise motor control.
• Onboard diagnostics keeps you informed.
• Fewer components
and wiring reduces weight & increases
dependability.
Power Control Center
• Lightweight, ergonomic pendants.
• Raised rubber
buttons are easy to activate, reducing hand fatigue.
• Water resistant, sealed switches operate on 12 VDC.
• High strength material for durability in harsh environments.
• Pendant standard on all models except pumps with manual valves.
Enhanced Reservoirs
• Low profile design simplifies transport.
• Sight gauge enables the operator to monitor reservoir oil
levels.
• Powder coated reservoirs stand up to the harshest environments.
• "Easy-Pour" fill
and drain hole makes preventative maintenance quick and
easy.
• Standard mounting holes to fit with optional roll cage or
casters.
• Wide variety of capacities with 1, 1.5, 2.5, 5, 10 and 20
gallon reservoirs.
 Click
Here for More Information
|
| |
| |
