Hydraulic
Punches
|
| Simplex
35 Ton Portable Punch hydraulic connections rotates 360° with
the top handle making the hose positioning easier in tight areas.
The punch mounted motor control handle (included with SPH35SP) provides
easy operation and greater operator safety. The Simplex punch is also
offered in a double-acting model for increased speed and positive
stripping on every punch. Punches and dies are interchangeable with
competitive punches. |
| |
| Single-Acting
Punch |
Features
| • |
Coupling
port rotates 360°for work in tight areas. |
| • |
Punches
.50 hole through mild steel. |
| • |
Round,
square & oblong punch & die sets available. |
| • |
Uses
competitive interchangeable punches & dies. |
| • |
Mounting
holes for production punching. |
| • |
10%
lighter than other portable punches. |
| • |
Punch
mounted motor control for safety. |
| • |
Ergonomic
two handle design provides better balance and control. |
|
 |
| |

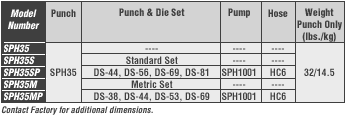

| Specifications |
 |
| |
| Double-Acting
Punch |
Features
| • |
Light
weight, portable punch. |
| • |
Double-acting
for faster cycle time. |
| • |
Hydraulic
return for positive, hang-up-free stripping. |
| • |
Punch
mounted pump control for easy operation. |
| • |
Integrated
mounting feet for bench top production. |
| • |
Uses
industry standard punches and dies. |
| • |
Ergonomic
two handle design provides better balance and control. |
|
 |
| |
| Specifications |
 |
To
receive more information about the above products, please call, fax,
e-mail or use our Inquiries
page
|
