Beveling
Machines
|
 LKF450
- Beveling Machines for Multiple Angles
Bevel,
deburr and chamfer edges of steel plate faster and cleaner than angle
grinders. 30° , 45° and R2.5 radius available.
Features
| • |
Bevel
30° or 45° weld seams on steel, stainless steel,
nonferrous metals, brass and plastics |
| • |
Deburr
and chamfer, straighten edges, internal and external radii
and countersink holes from 7/8" dia. |
| • |
Fine
adjustment feature for slight chamfers when deburring for
the preparation of weld seams |
| • |
Three
milling heads — 30°, 45° and radius R2.5 — are
available |
| • |
Ideal
for the following applications:
- Moldmaking: straighten
edges, internal and external radii and countersink holes from
7/8" dia.
- Boiler and process plant construction: prepare weld seams on heat exchangers
- Mechanical engineering: deburr machine parts, chamfer edges to protect against
paint peeling and create visible edges
- Sheet metal: deburr cut edges |
| • |
One-year warranty |

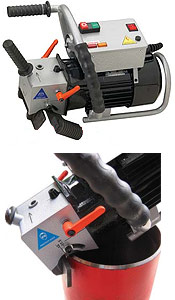

 LKF200 - Portable Beveling Machine
Bevel angles from 15° to 60° on plate and pipes
Features
| • |
Fast
and easy preparation of weld seams |
| • |
Bevel
15° to 60° angles on plate or pipe |
| • |
High-quality
performance allows better weld connections |
| • |
Continuously
adjustable angle (15° to 60°) and land width up to
5/8" |
| • |
Ideal
for steel, stainless steel, aluminum and nonferrous metals |
| • |
Robust
design, single operator control and easy handling |
| • |
Includes
two milling heads and 12 total indexable inserts for fast
metal removal and extended tool life |
| • |
Welding
angles and weld preparation on pipes/tubes with a minimum
OD of 6-1/4" (160mm) with included pipe roller guide |
| • |
Ideal
for beveling pipe 6-1/4" OD and larger |
| • |
Designed
for continuous operation |
| • |
Smooth
roller guides |
| • |
One-year
warranty |
|
| |
To
receive more information about the above products, please call, fax,
e-mail or use our Inquiries
page
|
